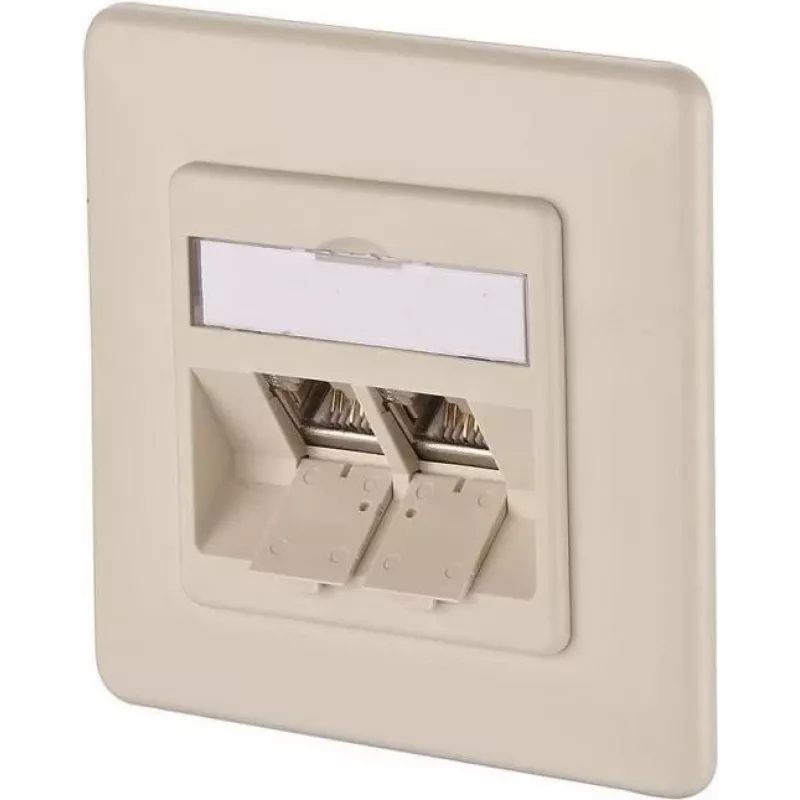

METZ CONNECT BTR E-DAT modul 8/8(8) UP Unterputz CAT 6 Netzwerk-Datendose, 2 x RJ45, Perlweiß RAL 1013 1309121001-E

Structured cabling in walls often suffers from unreliable connections and untidy terminations. This METZ CONNECT flush-mounted data outlet solves that by providing two shielded RJ45 ports in a single compact unit, ensuring stable, high-speed network access for voice, data, and video applications. The pearl white finish (RAL 1013) blends seamlessly into standard wall designs, while the integrated dust protection shutters keep contacts clean when not in use.

Who is it for

Ideal for electricians, network installers, and homeowners setting up or upgrading a structured cabling system. It suits office workstations, home offices, and multimedia setups where reliable Gigabit Ethernet or 10G-ready connections are required. The outlet is compatible with common design frames from Gira, Jung, Busch-Jaeger, and others, making it a versatile choice for both new builds and retrofits.

Main features

• Two shielded RJ45 ports in a flush-mounted (Unterputz) design for wall installation
• CAT 6 performance, supporting up to 10 Gigabit Ethernet over short distances and fully compliant with Gigabit Ethernet
• 8-pin, 8-contact (8/8(8)) wiring configuration with color-coded LSA termination for TIA/EIA 568A/B
• Gold-plated contacts (min. 0.8 µm) for corrosion resistance and reliable signal integrity
• Integrated dust protection shutters to prevent contamination when ports are idle
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for powering devices like IP cameras or access points
• Robust thermoplastic housing (PC/ABS) in pearl white (RAL 1013)

Specifications

• Product type: Network data outlet
• Mounting type: Flush-mounted (Unterputz)
• Performance category: CAT 6
• Connector type: RJ45
• Number of ports: 2
• Wiring configuration: 8-pin, 8-contact (8/8(8))
• Shielding: Shielded
• Termination type: LSA (Insulation Displacement Connector)
• Wiring standard: TIA/EIA 568A/B (color coded)
• Housing material: Thermoplastic (PC/ABS)
• Contact material: Gold-plated contacts (min. 0.8 µm)
• PoE compatibility: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Transmission speed: Up to 10 Gigabit Ethernet (10GBASE-T) over short distances; fully compliant with Gigabit Ethernet (1000BASE-T)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Compatibility: Design frames from Gira, Jung, Busch-Jaeger, and others

Tips

For best performance, use CAT 6 or higher rated cables and ensure proper termination according to TIA/EIA 568A or B. The dust shutters automatically close when no plug is inserted, but avoid forcing connectors to prevent damage. When pairing with a frame, check the manufacturer's compatibility list for a perfect fit.
